Case Study: Terra Cotta Kamado Grill Restoration – Historic Preservation by Marion Restoration

Every project represents a distinctive blend of craftsmanship, historical significance, and technical expertise. The restoration of a rare terra cotta Kamado grill exemplifies the complexity and precision that defines Marion Restoration’s approach to historic masonry conservation.

The terra cotta Kamado grill, a unique and historically valuable artifact, was originally designed for high-heat cooking using traditional methods. Its intricate craftsmanship and rare construction materials made its preservation particularly important. The client, part of a multi-generational family business operating a well-established restaurant, recognized the sentimental and historical value of this object. The Kamado had served the family for years and represented a cherished link to their culinary heritage. Following years of disuse and exposure to environmental elements, the family decided to preserve it as a decorative centerpiece that would celebrate their history and craftsmanship within their restaurant setting.

Upon receiving the Kamado grill, a comprehensive evaluation was conducted by the skilled conservators at Marion Restoration. The inspection revealed multiple structural vulnerabilities and aesthetic deficiencies that required immediate attention. Key findings included:

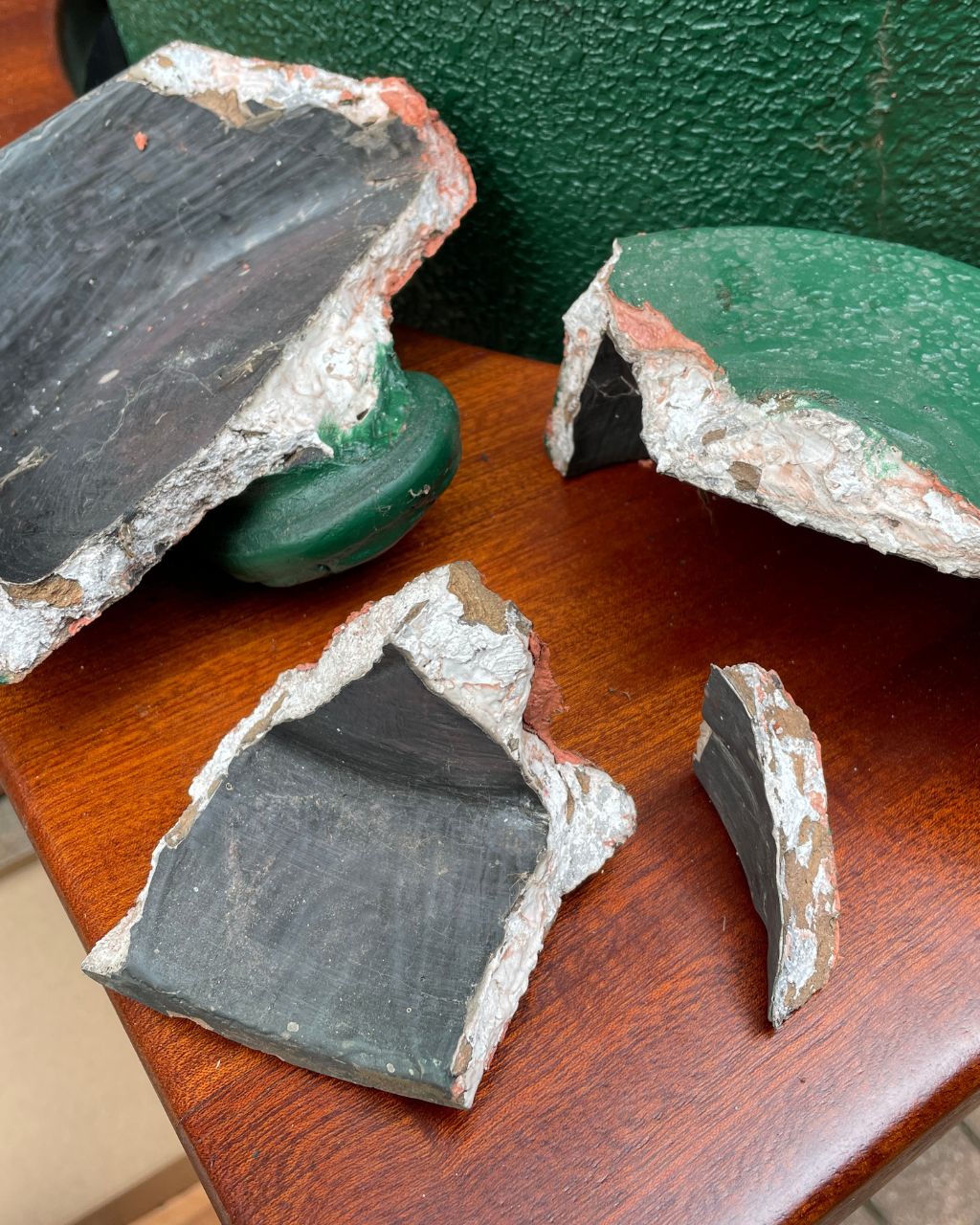

1. The top vent had suffered significant damage, fractured into four separate pieces.

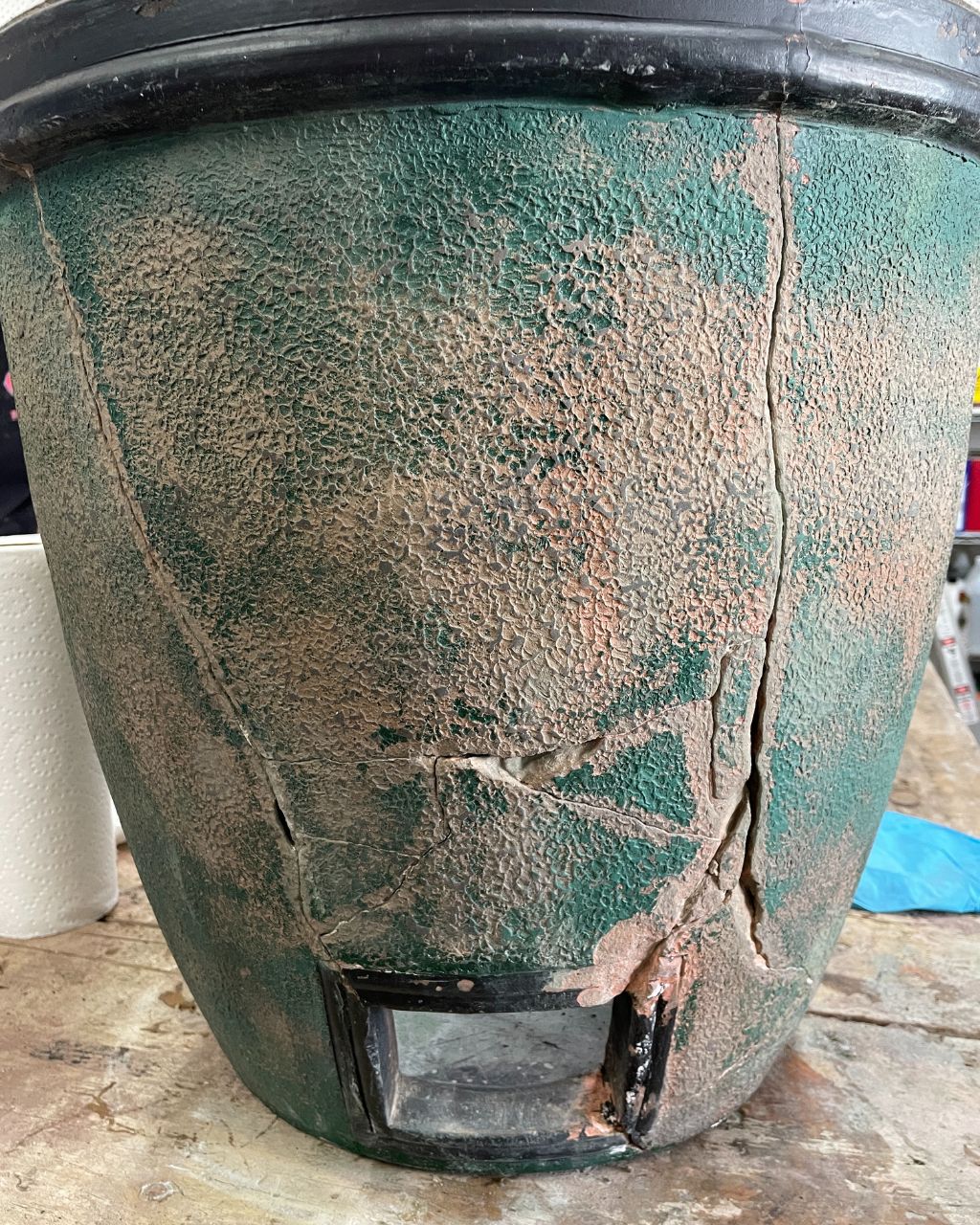

2. The base displayed extensive cracking that compromised its structural integrity.
3. The bottom vent exhibited cracks concentrated at all four corners.

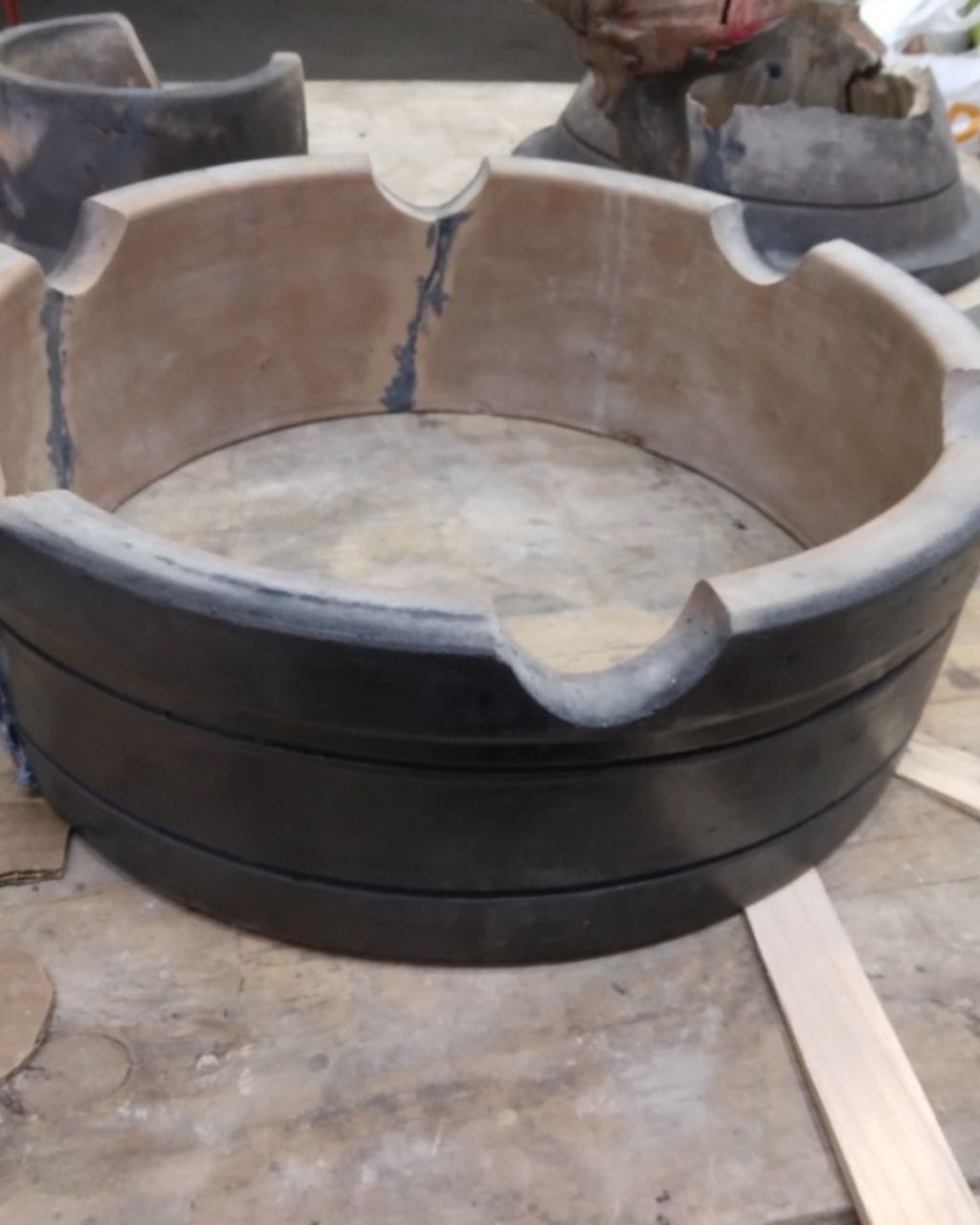

4. Both the fire ring and fire box presented multiple, intersecting cracks.
5. The exterior featured a non-original modern paint that potentially trapped moisture, exacerbating deterioration.

Given the fragile nature of terra cotta, restoring the Kamado required a highly specialized approach rooted in conservation science and preservation best practices. All proposed treatments adhered to guidelines established by the U.S. Department of the Interior, National Park Service Preservation Briefs.

The restoration unfolded through a series of methodical stages, each designed to address specific challenges while ensuring the grill’s long-term preservation and visual authenticity.

1. Controlled Paint Removal

The first phase targeted the removal of the modern, non-original paint layers that concealed the terra cotta’s original finish. The paint removal process involved:

• Application of custom-selected paint removers and controlled dwell times based on prior testing.
• Careful monitoring to prevent acid-etching or compromising the underlying terra cotta fire skin and textured surfaces.
• Owner-approved test samples that established safe and effective removal parameters.

This stage not only restored the original appearance but also eliminated moisture entrapment risks, which could lead to future cracking or spalling.

2. Stabilization and Repair of Structural Damage

With the surface cleared, the team addressed the structural deterioration using advanced stabilization methods:

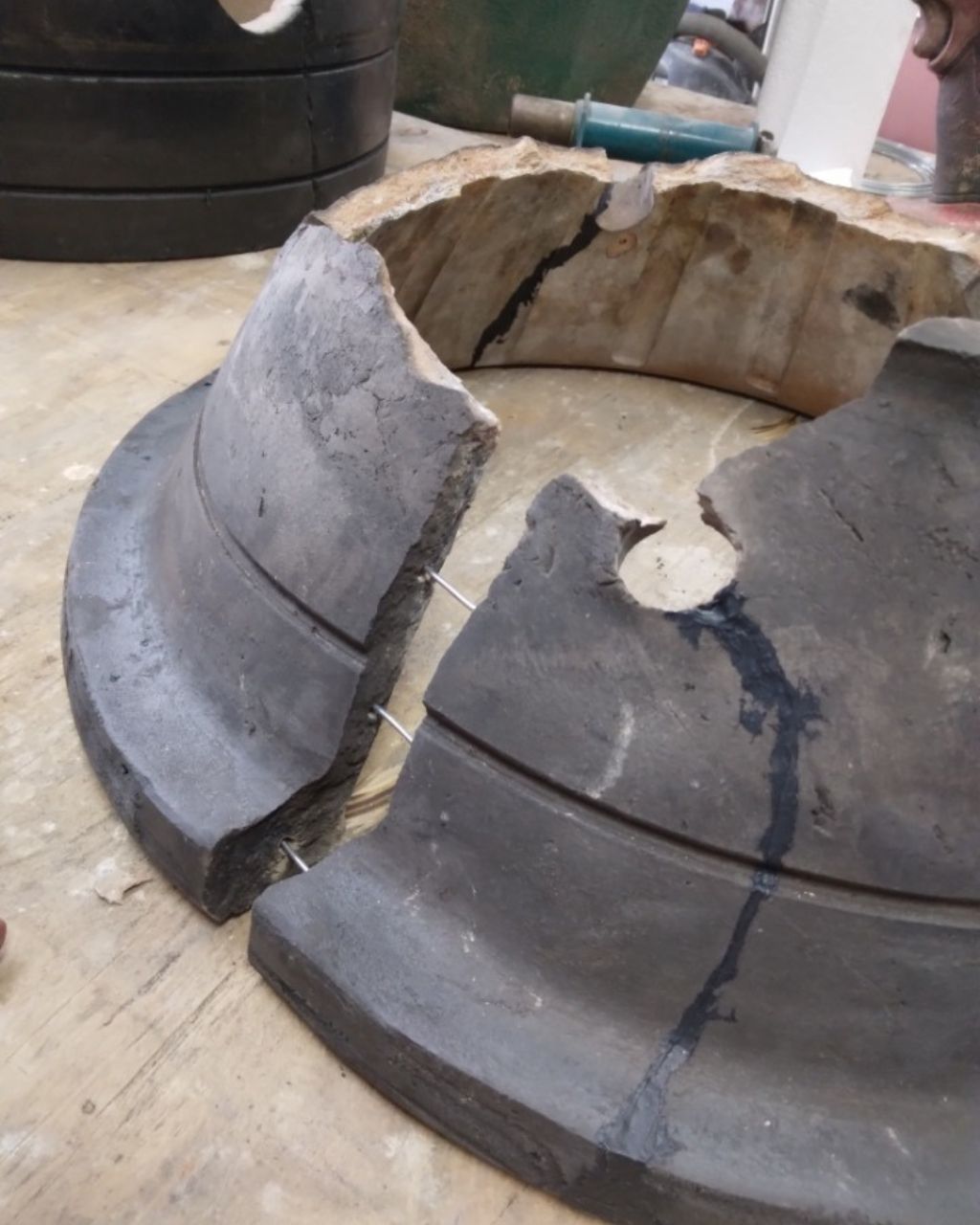

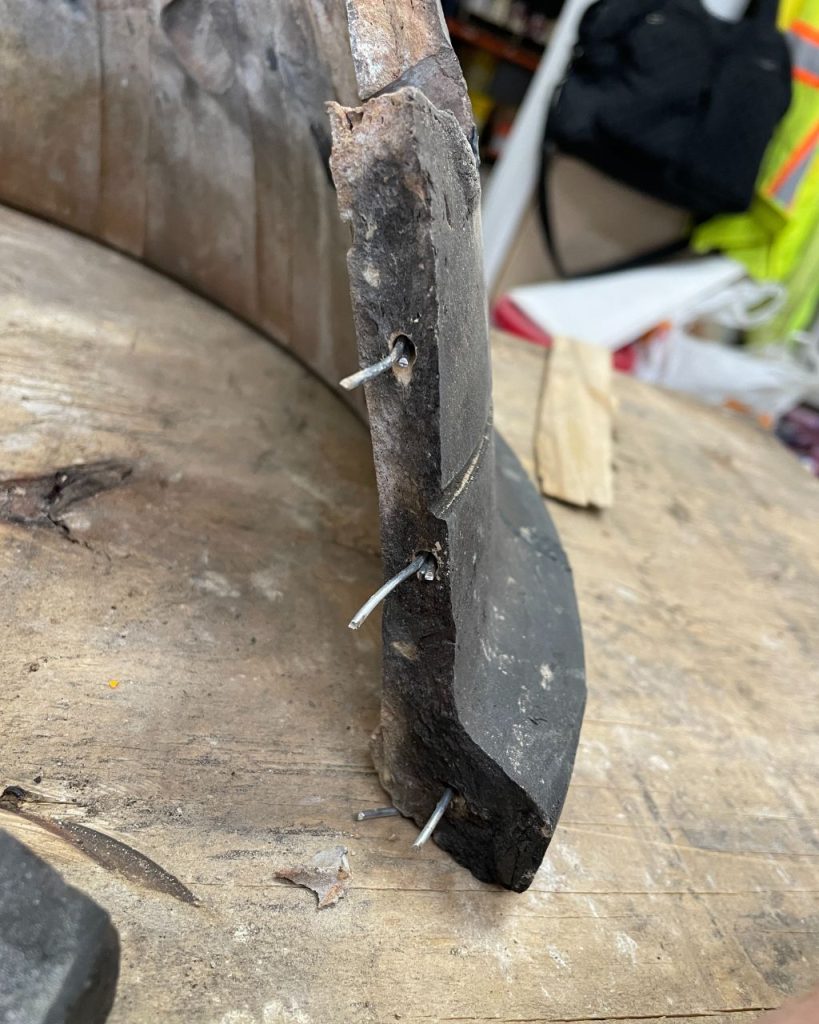

• Stainless steel pins were precisely drilled and installed to anchor broken segments securely.

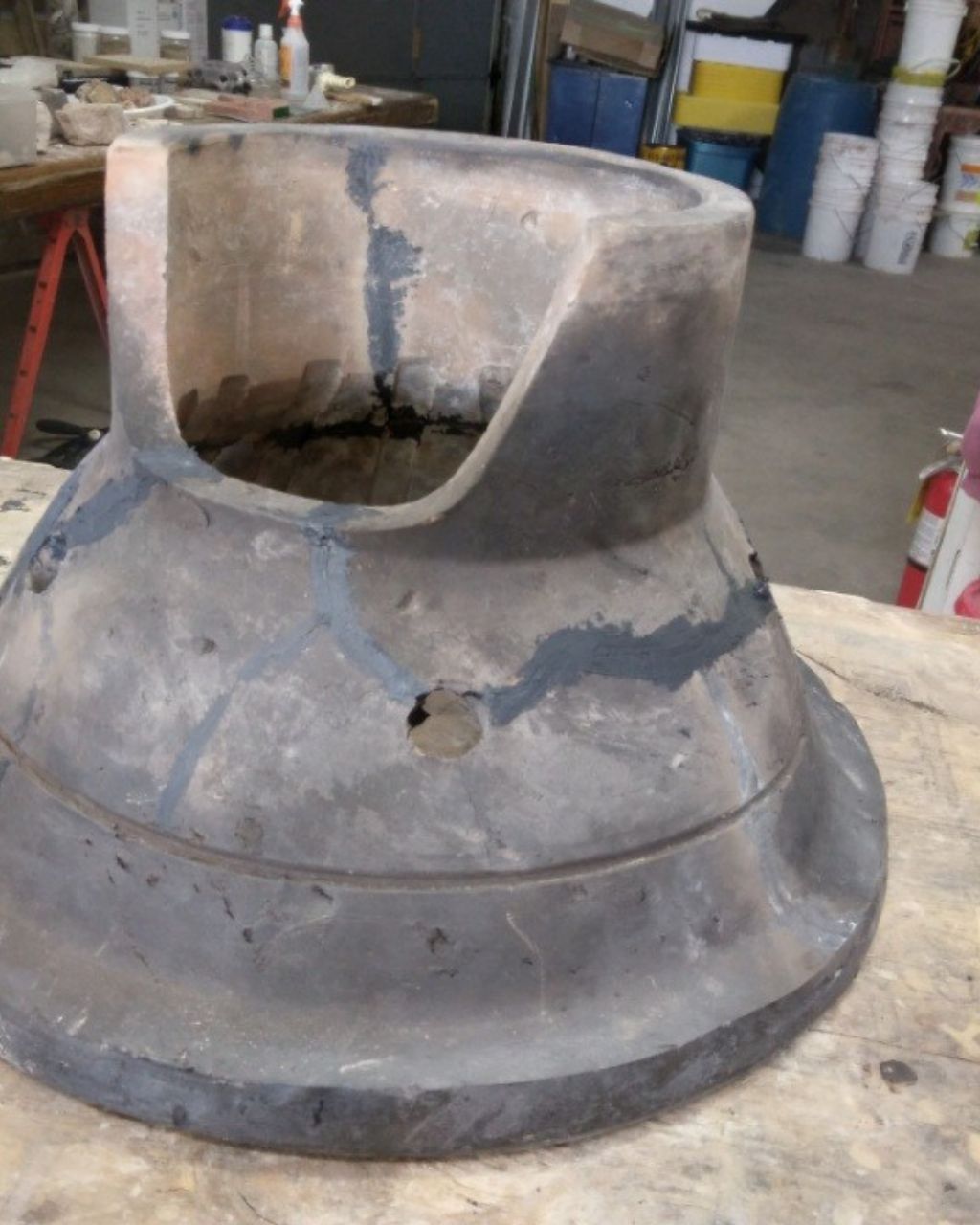

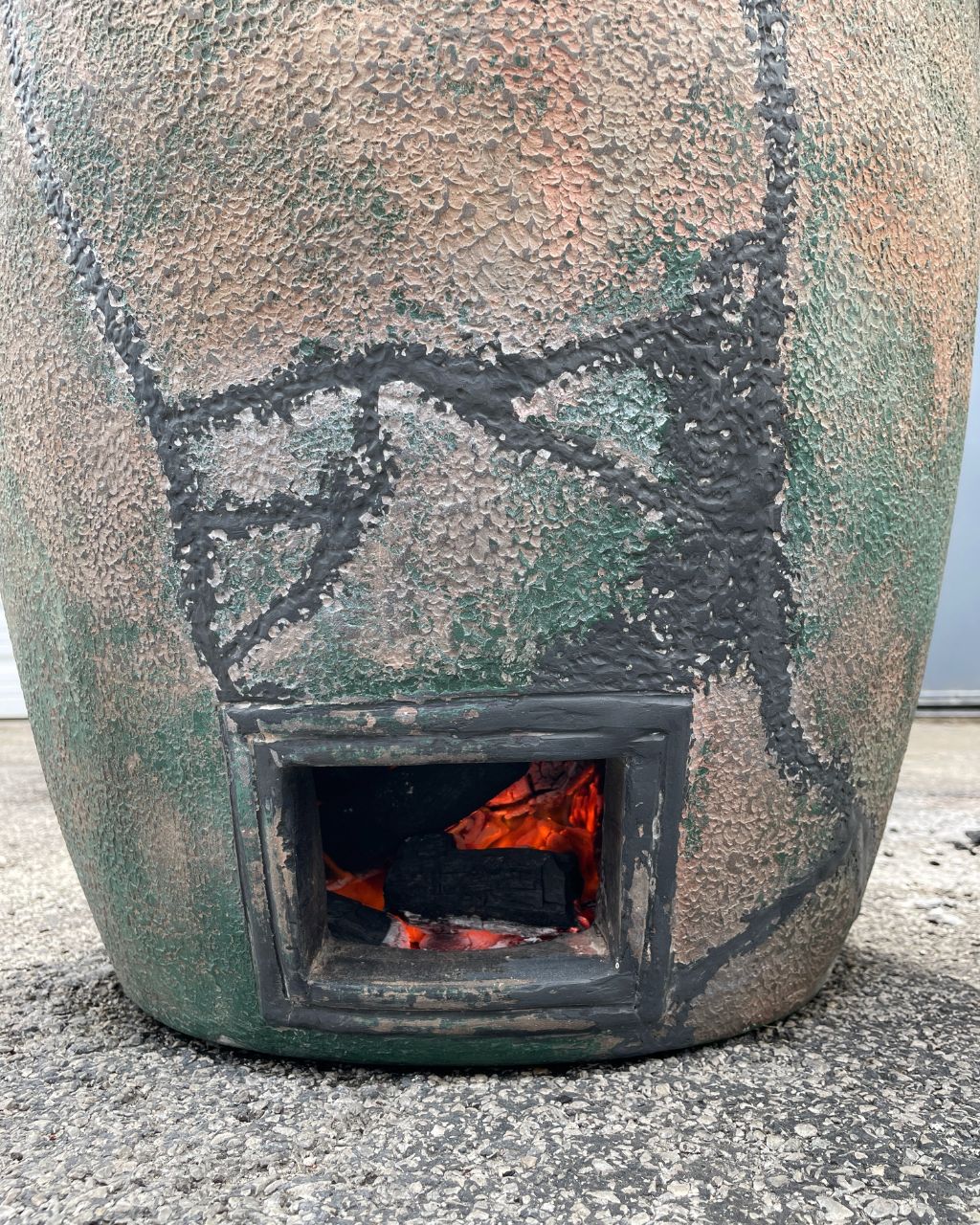

• Specialized terra cotta repair mortars filled larger cracks and reinforced the compromised sections.
• Copper wire strapping was applied around the fire ring and fire box to provide additional durability under thermal stress.
• For hairline cracks, the team employed dispersed lime injection mortar, carefully applied after surface preparation to ensure deep penetration and long-term stability.
• All repairs underwent fire curing after sufficient dry-curing periods to simulate the original manufacturing conditions of the terra cotta components.

3. Reproduction of the Original Finish

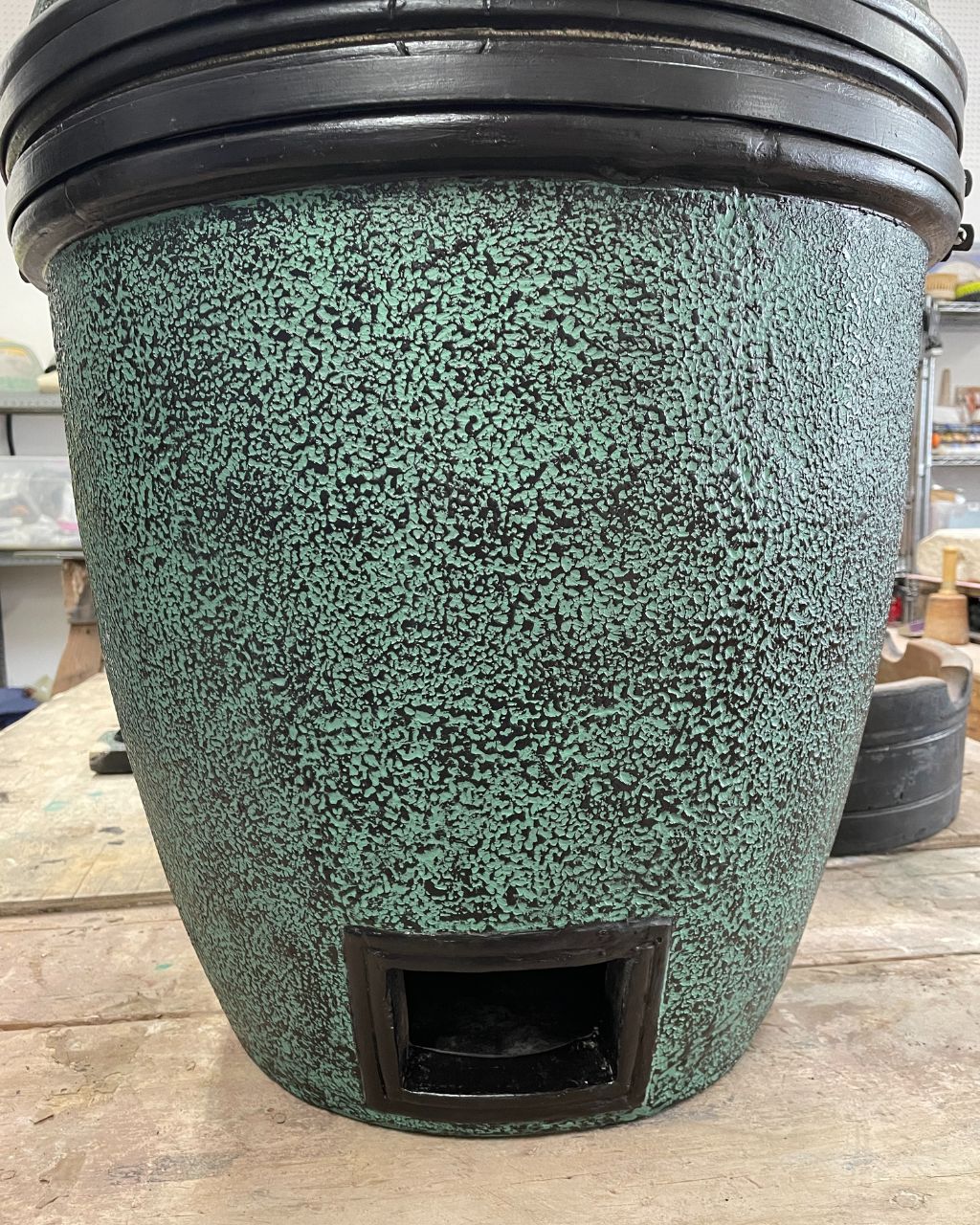

Following structural stabilization, efforts shifted to restoring the Kamado’s authentic aesthetic. Historical research and physical evidence suggested that the original finish consisted of a light aqua/marine green glaze with contrasting black raised textures. The restoration process included:

• Crafting and presenting mockup samples to the client for approval.

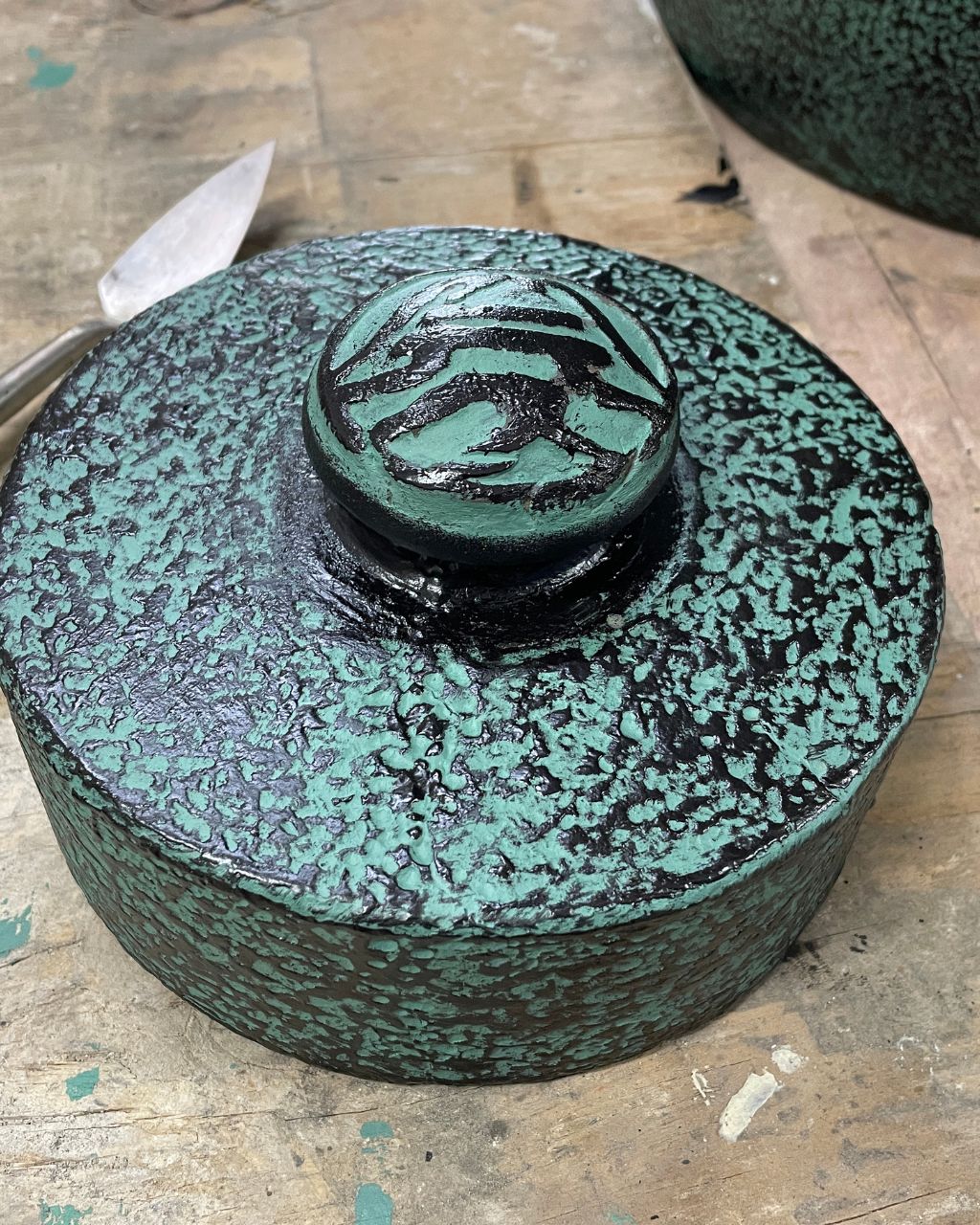

• Applying high-fidelity finish repair coatings that faithfully replicated the original glaze, color tone, and texture.
• Ensuring seamless integration of repaired sections with surrounding ornamentation to create a visually cohesive final product.

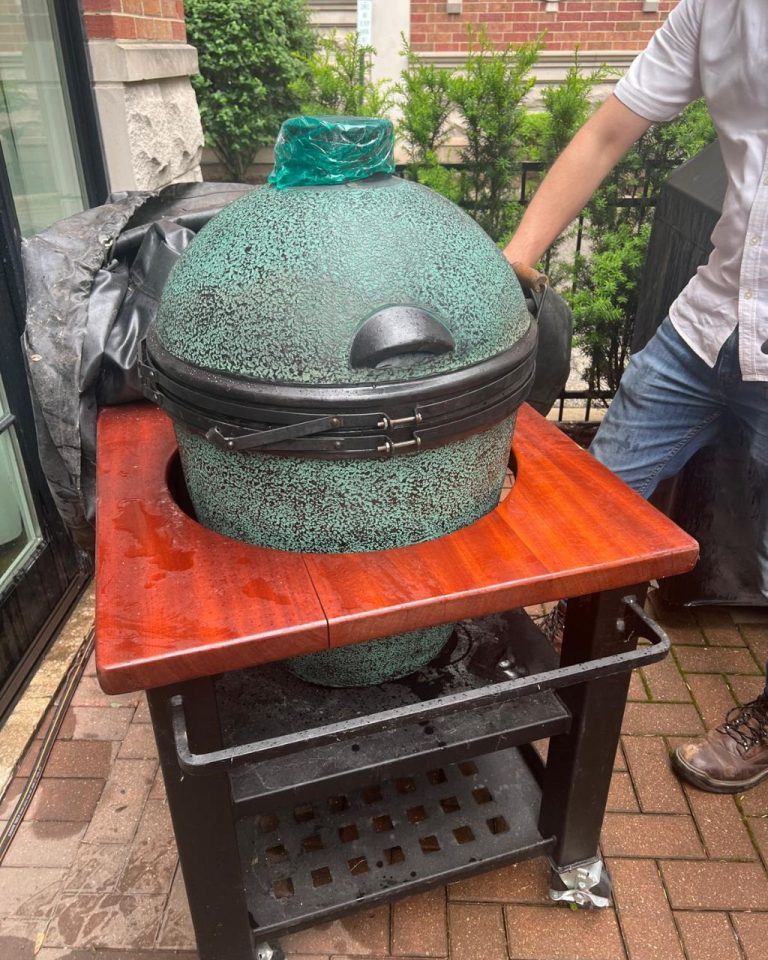

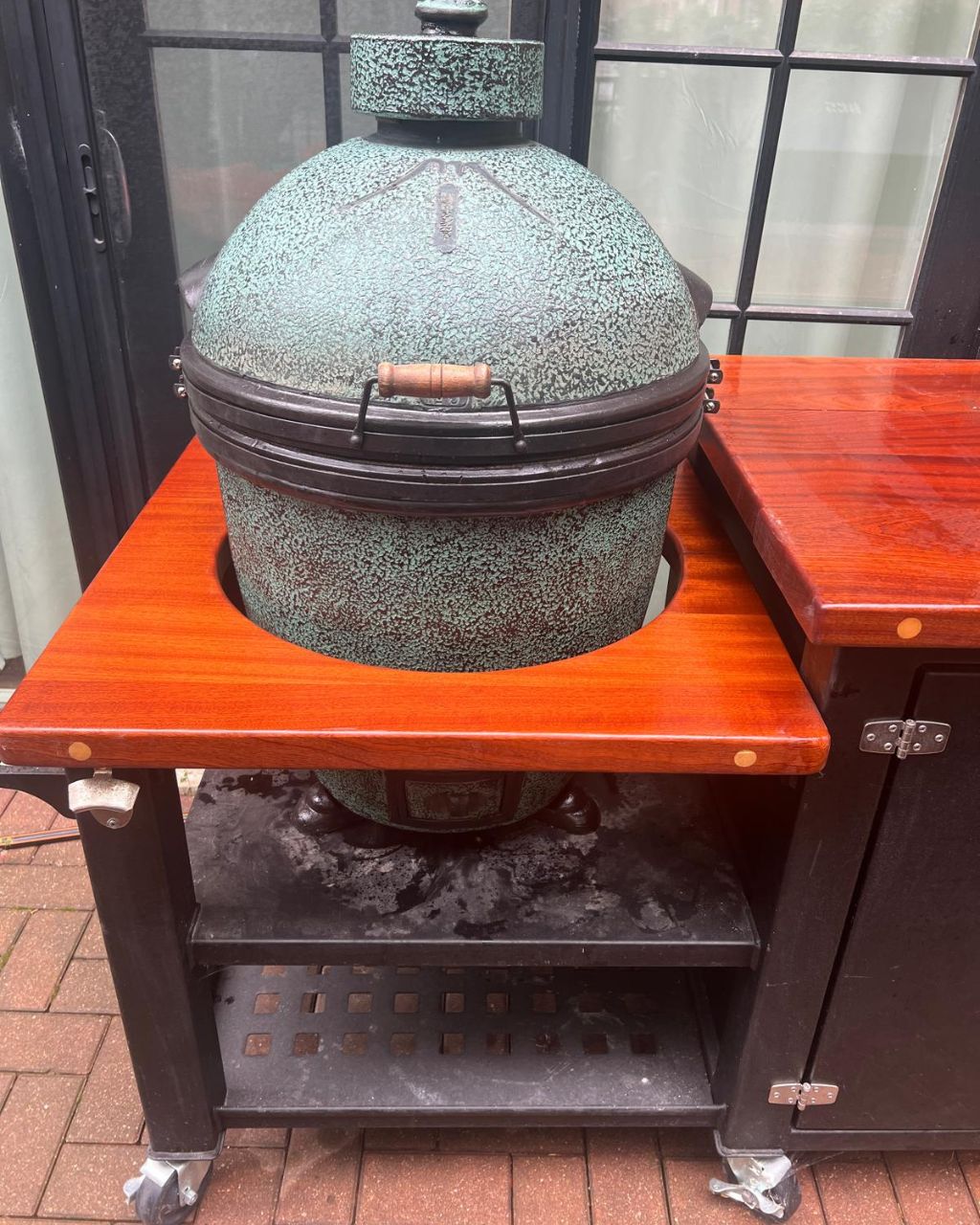

The restored terra cotta Kamado grill now stands as a fully stabilized, historically faithful artifact ready for continued use and appreciation. It has been proudly installed in the family’s restaurant as a permanent decorative centerpiece, offering both patrons and family members a tangible connection to the business’s long-standing culinary traditions. Its presence serves not only as an aesthetic feature but also as a conversation piece that narrates the restaurant’s rich heritage to future generations.

Marion Restoration has earned its reputation as a leading specialist in the field of historic masonry restoration. By combining decades of technical experience with a deep respect for architectural heritage, Marion Restoration delivers customized solutions that honor the past while ensuring long-term durability. This case study of the terra cotta Kamado grill exemplifies the organization’s ability to address complex restoration challenges with expertise, care, and outstanding results.
